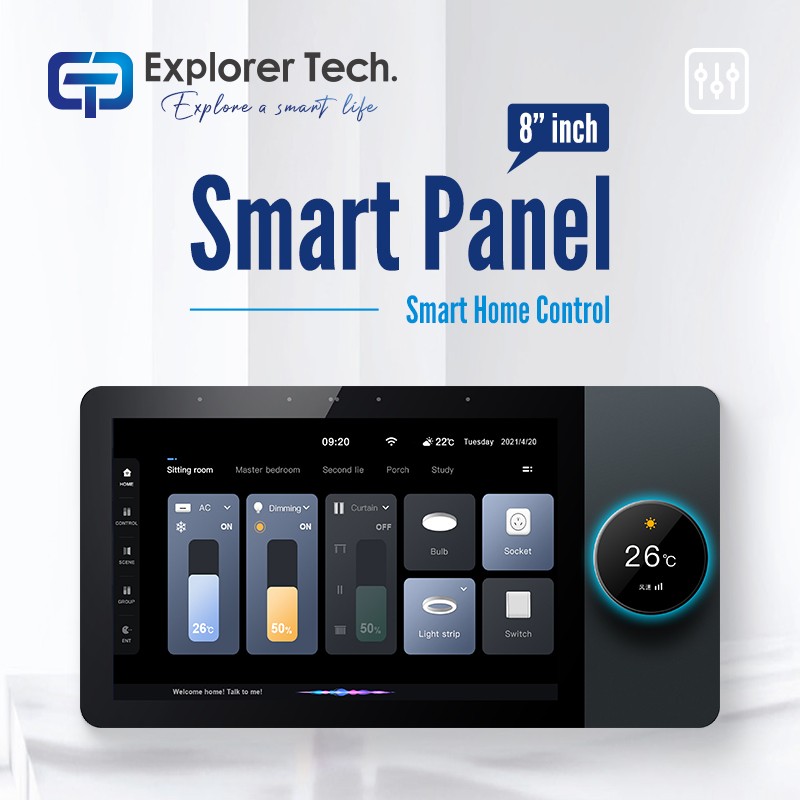

8 inch wifi smart house panel multi functional central control screen smart home control panel smart switch panel central controller host with gateway

8 inch wifi smart house panel multi functional central control screen smart home control panel smart switch panel central controller host with gateway

Product Item:ET-F8
Resolution: 1280*800 IPS
System: Android 8.1
CPU: quad-core Cortex 1.5ghz
RAM: 2GB
ROM: 8GB
Power input: AC110-250V

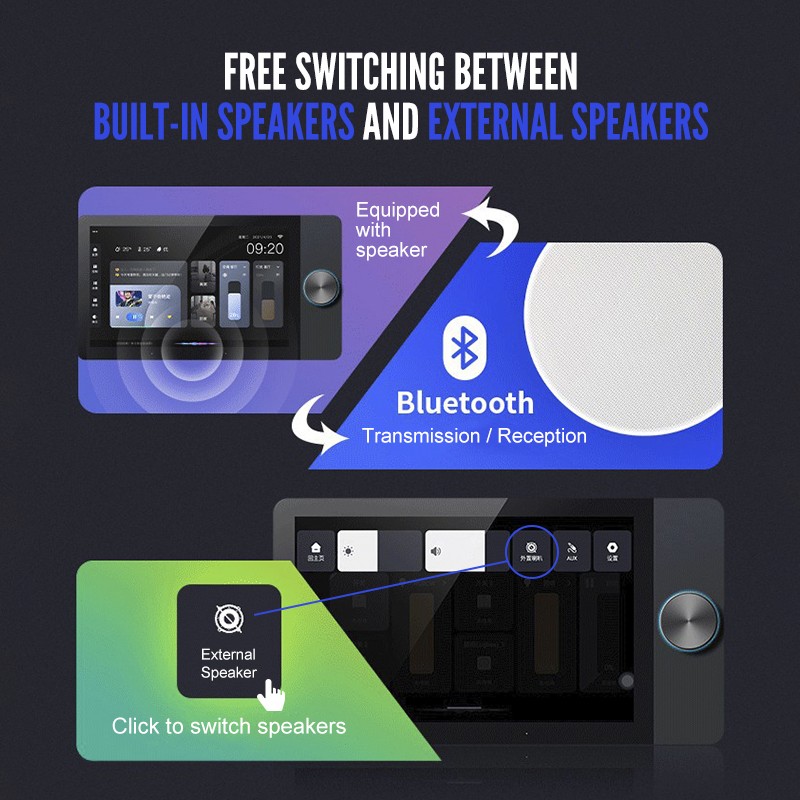

Horn power: 2*(10-25W)/4*(10-25W)(MAX)
Output Impedance: 4-8Ω
Total harmonic distortion : 0.03%(1W,1KHZ)
Frequency Range: 20Hz-20Khz
Audio To Noise Ration: 98dB

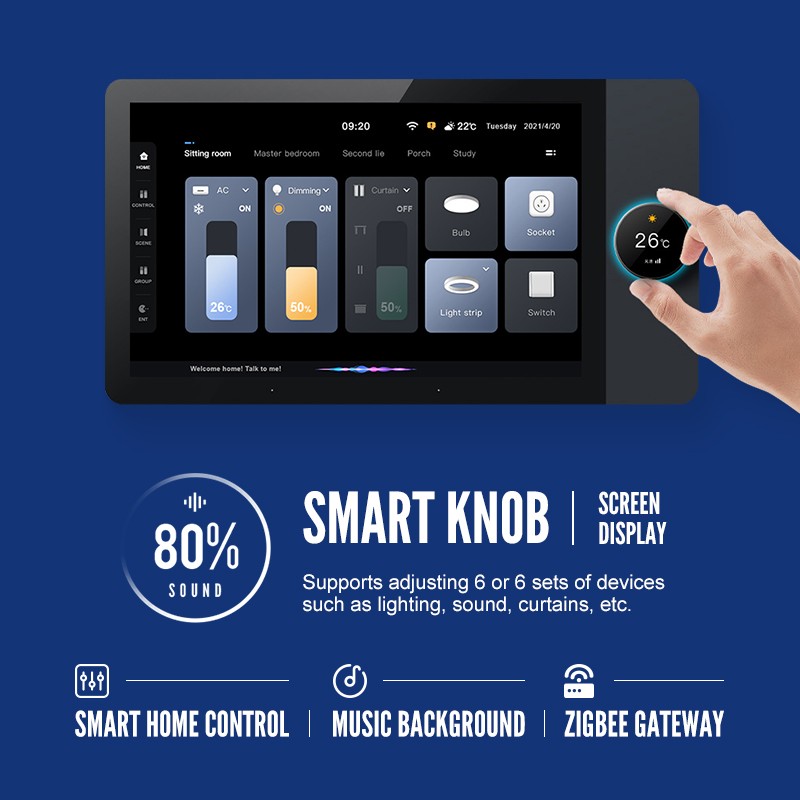

Adjustment knob: Support
Power of relay: 2*200W(MAX)

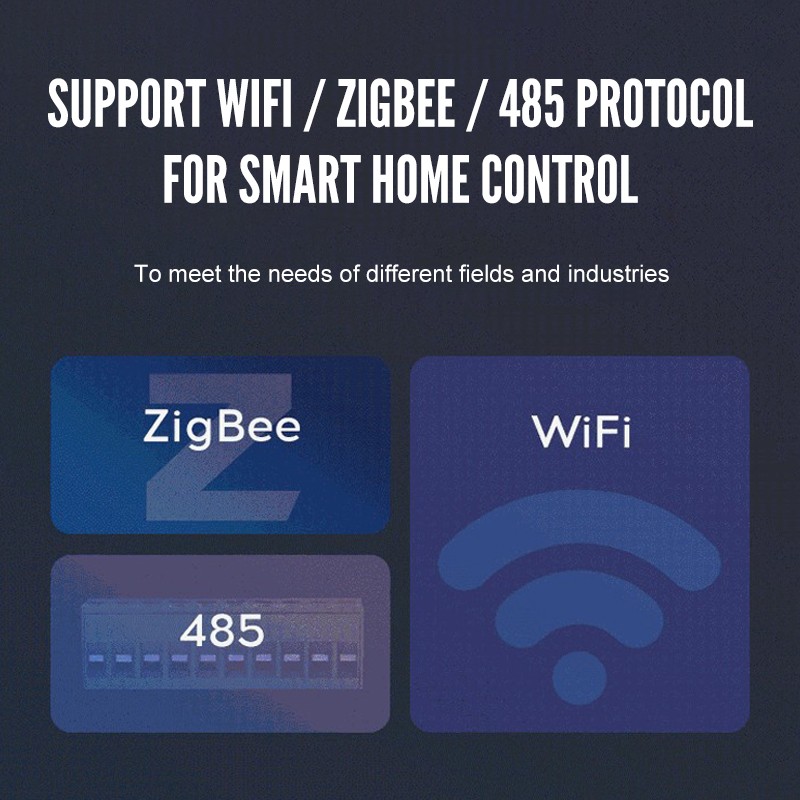

Wired Network: Support
WIFI: Support

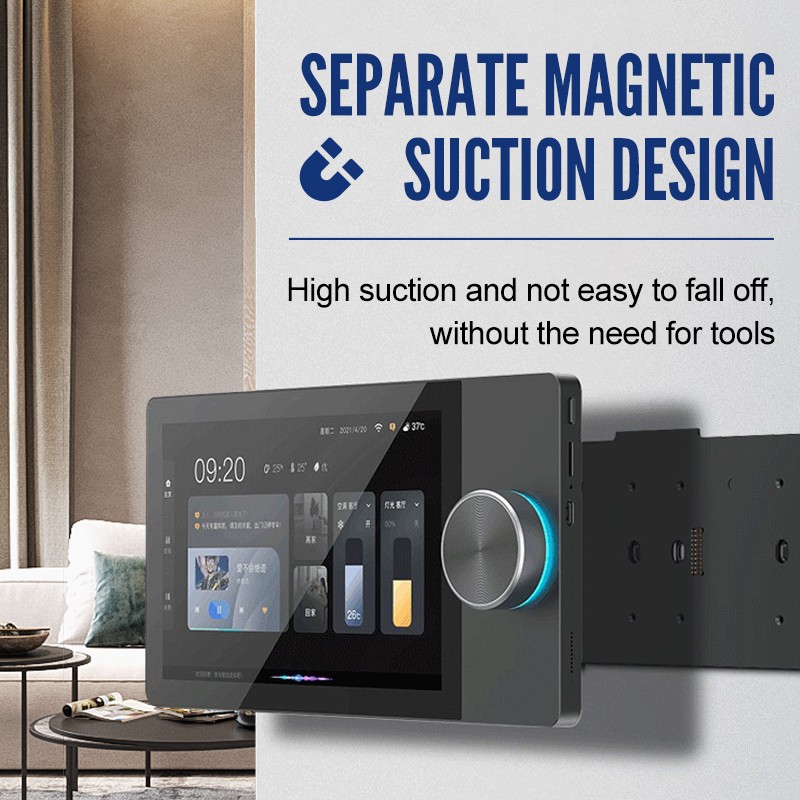

The box size: Standard single 86/ pair 86
  • Product Detail
  • FAQs

More Details:

1. All in One: All the connected devices can be displayed on the 8inch high‑definition LCD screen simultaneously and clearly. You can simply control any device with just one click.

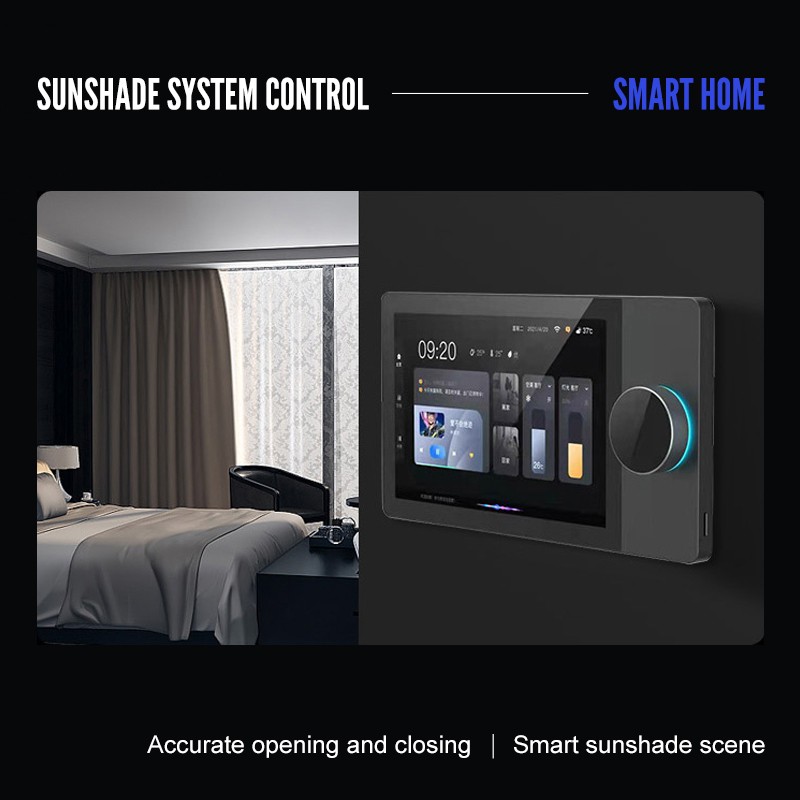

2. Smart Home: Up to 100 sub‑devices can be added, using the panel to trigger smart scenarios such as turning off the air conditioner, opening the curtains, etc.

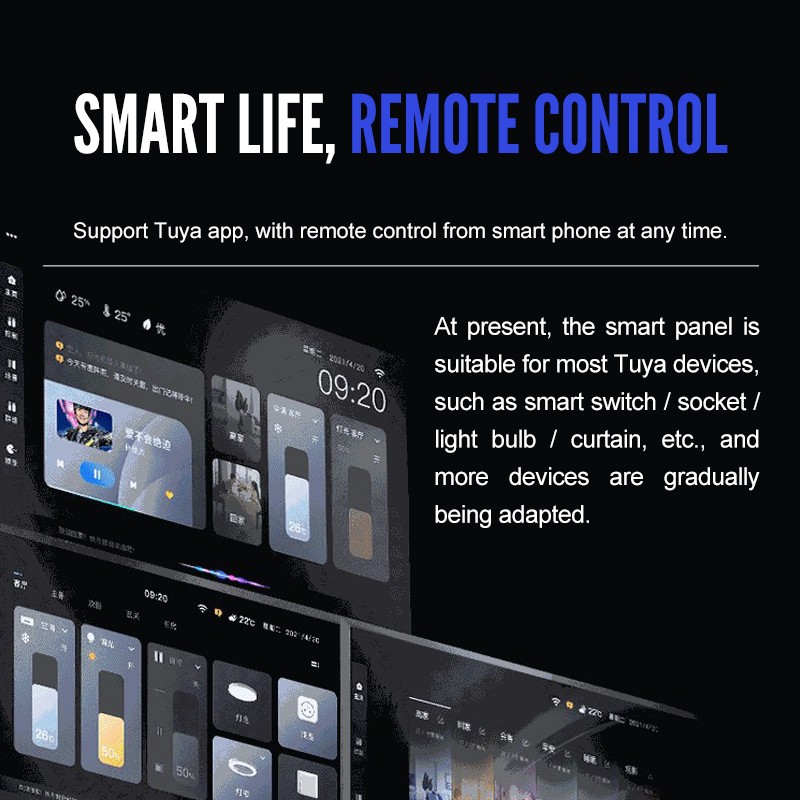

3. Scene Linkage: The smart scenes in the APP can be synchronized to the screen panel.

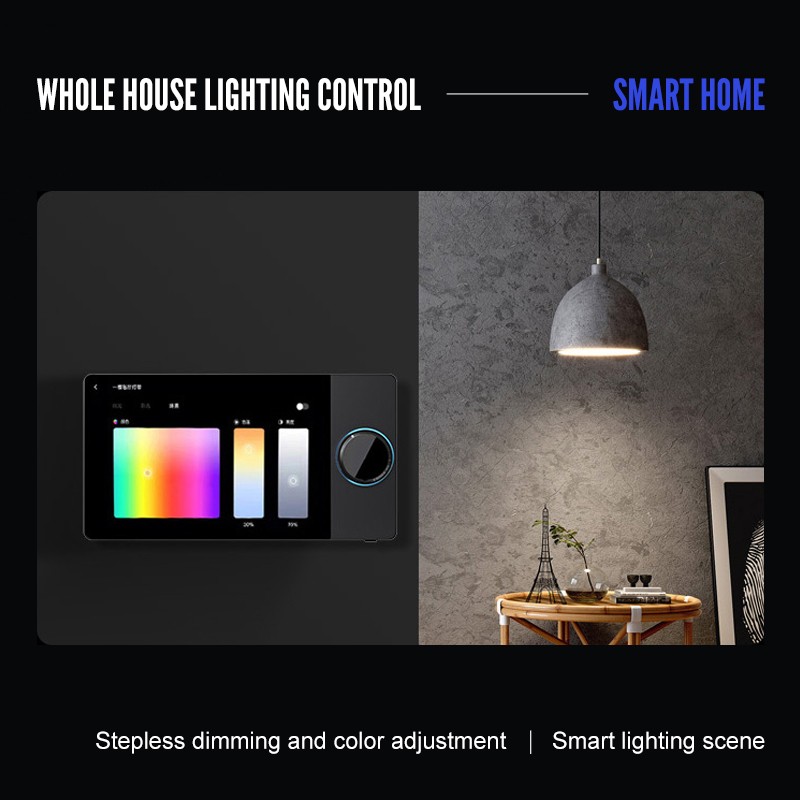

4. The screen brightness can be adjusted automatically.


Set Up:

1. Power the Control Panel.

2. Please connect your mobile phone to your home WiFi, and your home WiFi need be set to 2.4G. If your home's 5G WiFi is compatible with 2.4G, you don't need to switch.

3. Please open your downloaded APP "TUYA", then open this application and register and log in to your personal account. Then authorize the app to locate your current location.

4. Please click "Add Device", select "Gateway Control" on the left, and then select "Multi functional Central Control)".



Q: When will you arrange the production?
A: We usually arrange the production immediately after receiving your payment if we have the item in stock. Otherwise, please confirm with us for lead time.

Q: What is your accepted payment type?
A: Wire transfer, Paypal and Western Union, and Alibaba Trade Assurance.We only accept Paypal and Western Union, and Alibaba Trade Assurance for payment amounts below USD400.

Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

...
